Cisco Router Show Commands

Like any other operating system, the Cisco operating system enables the administrator to run certain commands to retrieve or change the configuration parameters of the Cisco Router.

Among these commands “show” is a powerful command used in CISCO IOS and it gives you the most important data that you may want to view.

Below is the list of most commonly used show commands used in Cisco devices.

CISCO IOS command Meaning
R1# show interfacesUsed in order to display the information of all interfaces.
R1#show versionTo display the version information
R1# show interface fa0/0Show information associated with interface fa0/0
R1#show CDP entryTo display the summary of  neighbor devices
R1# show clockDisplay System clock
R1#show usersTo Display all connected users
R1#show historyTo view the history of Cisco IOS commands used.
R1#show flashDisplays information about Flash
R1#show arpDisplay the ARP table
R1#show protocolsDisplays the status of layer three configured protocols
R1#show IP routeDisplays IPV4 routing table
R1#show ipv6 routeDisplays IPV6 route
R1# show access-listDisplays the access list
R1#show cdp entry*To display detailed information about neighbor devices



Show interfaces

It is really important to know what are the interfaces available at the router and their statistics, either they are up or down. Show interfaces command is very verbose and it contains huge information, from this command you can view speed, duplex or if there is any error on the interface.

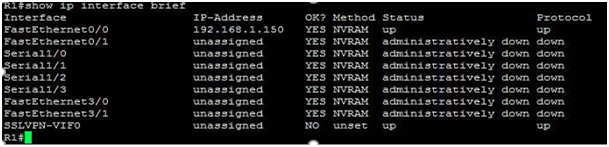

Show IP interface brief commands can be used in order to view the quick information on router interfaces including Layer2 and Layer-3 information

quick information about interfaces

Show IP arp

This command is used in order to view the ARP (Address resolution protocol) information it focuses the

Information that is retrieved from the ARP protocol is used to MAP IP addresses to MAC addresses. This information is used to send the traffic to the host that resides inside the LAN.

ARP table



Also, read…

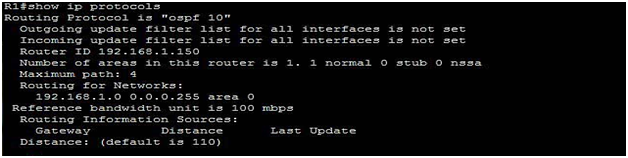

Show IP protocols

This command is used when Dynamic routing protocol Like OSPF, EIGRP, BGP is running on the router. This command can be used to verify that the routing protocol is running as expected.

IP protocol

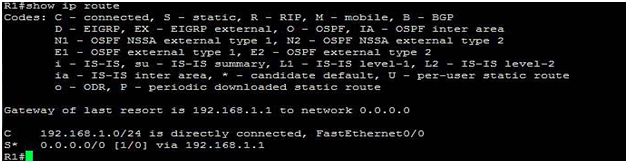

Show IP route

This is a very vital command used in order to verify the routing tables,

Routing table

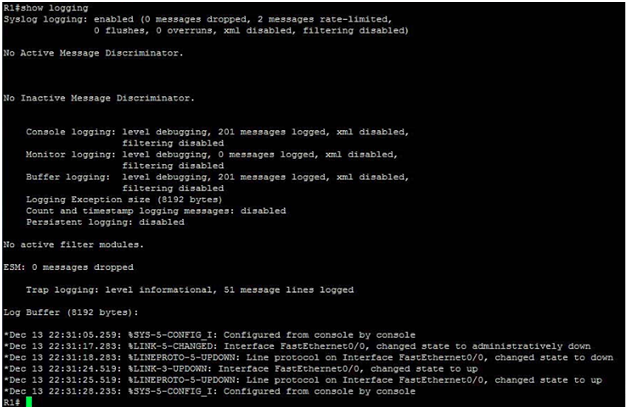

Show logging

It is used to display the Syslog errors and event logging, the show logging command displays messages that are logged into the buffer.

logs on cisco router

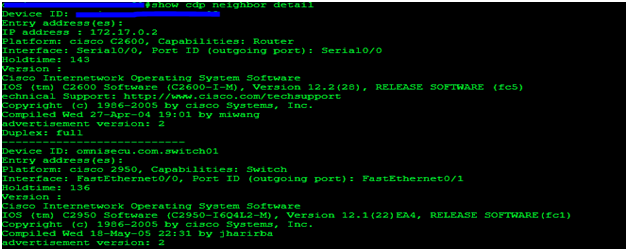

Show CDP neighbor

This command provides brief information about the neighbor devices, in order to view the more details, we may use show CDP neighbors details or show CDP entry *.

cdp entry on cisco router




Download Cisco Router Show Commands in pdf – Click here
