Your query is What type of cable used to connect a workstation serial port to a cisco router console port? well, let’s discuss it.
The Rollover cables are used to connect a workstation to a serial port to a cisco router port. When we are trying to establish an ethernet connection, we should make sure that the wire is properly get connected at both sides of the sender and the receiver.
The Rollover cable can be also called the Console Cable, Yost cable, or a Cisco cable. It is used to connect the computer terminal to the router console port. It is typically flat and colored to distinguish it from other types of network cabling. The below figure represents the roll-over cable. When a computer is connected to the roll-over cable and another end to the router or it can be a switch.
These are the ways to access a router or a switch. Let us discuss the pinouts in the rollover cable and connections. Below is the diagram of the pinouts of a rollover cable. The two boxes are the end-to-end connectors and they differ from each other. The end of the cable consists of the RJ45 connectors.
The cable consists of eight wires, the left-hand side gets numbered from 1 to 8 from bottom to up. But on the right-hand side, it gets numbered from top to bottom. The pinouts are exactly opposite on each side of the cable. The pinouts on the left-hand side go to the same number of pinouts on the left-hand side. After the connection, it gets completely rollover, which gives the indication of the name as the rollover cables. T

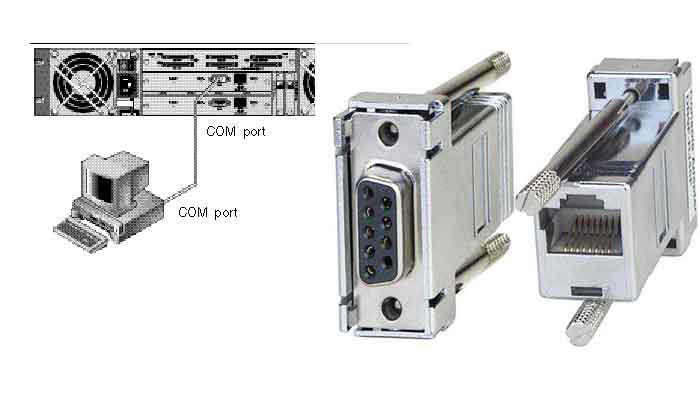

he below figures are some of the rollover cables, they are in light bluish color, the RJ 45 is connected at one end and the other end is connected to a DB9. The DB9 is used to connect to a laptop, PC.
I hope you have read “Type Of Cable Is Used To Connect A Workstation Serial Port To A Cisco Router Console Port” is.
