Access Control Lists (ACL) | Standard, Extended and Named ACL

Access Control Lists are used to filter the packets to avoid traffic in the network. The security is provided to limit the traffic. By using the name or number ACL is identified. Filtering is used in the access list and packets are gets filtered based on the criteria defined in the access list. Access control lists can get created can be modified.

Access Control List acts as a firewall for controlling ingress and egress traffic of one or more subnets. You can set up your ACL rules similar to your Security Groups.

Remember, security groups and access control lists are two different things because AWS Network ACLs are stateless, unlike security groups that are stateful. In simple words, changes in incoming rules will not be applicable to the outgoing rule in the access control list. For example, if you want to change the port of communication of your instances then you have to add an inbound as well as an outbound rule.

Direction and Location to apply Access Control Lists (ACLs)

When a packet starts its journey from the router it got interacted with three locations

  1.  Entrance
  2.  Forward decision
  3.  Exit

We can only apply the conditions on entrance and exit .at the middle of the journey it makes the forward decision so the packet cannot get filtered. The condition applied to the entrance and exit work is called inbound filter and outbound filter respectively. Before the router took the forward decision the inbound filter filters the traffic, and after the router makes the forward decision the traffic is get filtered in the outbound filter.

Two actions occur in ACL filter conditions. They are:

  • Permit
  • Deny

Types of Access Control Lists (ACLs)

There are three different types of ACLs, they are:

  1. Standard ACLs
  2. Extended ACLs
  3. Named ACLs

 Standard Access Control List (Standard ACL)

Standard Access Control List is better than the Extended Access Control List according to their performances. It is a more secure and easiest way to manage the network is a standard ACL rather than an extended access control list.

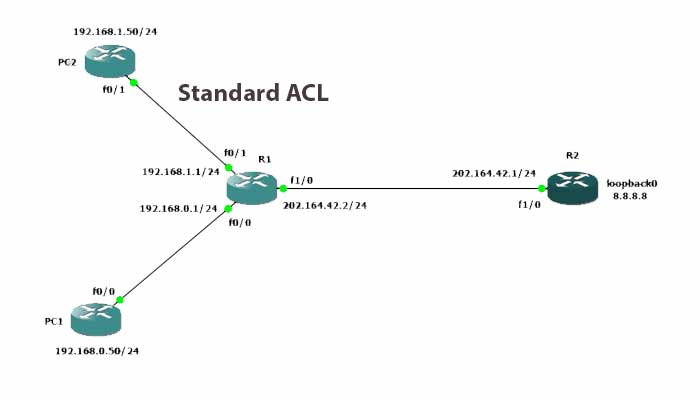

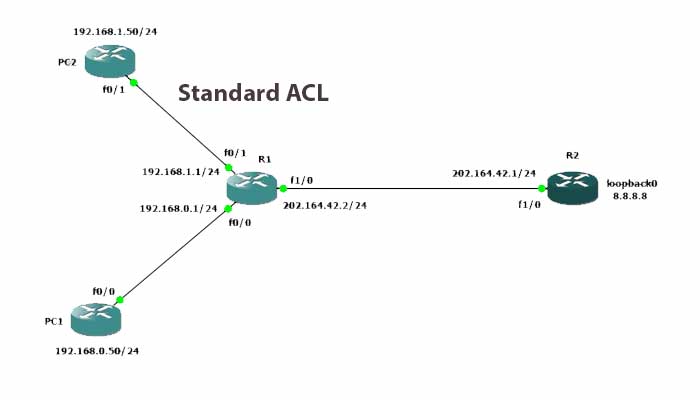

Standard Access Control Lists

Standard ACL is one type of oldest control list among the access control list. Standard ACL can control traffic by managing the data’s belongs to them. Based on the source IP address of datagram packets traffics is controlled in the standard access list. By using the “access-list” IOS command standard access list can be created.

Characteristics of Standard Access Control Lists

  • ACL numbers are used to write the standard ACL. The range of the number used is from 1-99. So any number between 1 and 99 is standard ACL.
  • Based on source IP address traffics are filtered. In other words, based on the source address ACL rules are written.
  • The source address is the only source ACL contains. So filtering takes place at the destination which is the best place for filtering. So ACL is near to the destination.
  • The outbound direction is the important and best place we can apply standard ACL.
  • Having all those advantages standard ACL also contains disadvantages too, i.e. it may lose some functionalities like Transmission Control Protocol (TCP) or User Datagram Protocol (UDP) access cannot get managed.
  • To identify the devices or the address of the packet we can use the wildcard mask for a standard ACL or for an extended access control list.

Creating Standard Access Control Lists (Standard ACL)

By using the access-list command we can create a standard ACL. The syntax is shown below.

access-list [Access_lis t_number] [permit | deny] [IP_address] [wildcard mask (optional)]

access_list_number- the range of ACL numbers from 1-99 or 1300-1999 is used by the standard ACL.

Permit/deny– used to allow or delete the traffic.

IP_address– to filter the traffic IP address is required.

Wildcard mask– here wildcard mask is optional. It is used to specify the entire subnets instead of specifying a single IP address. Another name of the wildcard mask is the inverse mask.

Extended Access Control Lists (Extended ACL)

Extended Access Control lists are a group of conditions that are wrapped together by a particular name or number. The conditions used in this group are the number. And these conditions are used to avoid traffic on routes. Through these conditions, we can avoid or filter traffic.

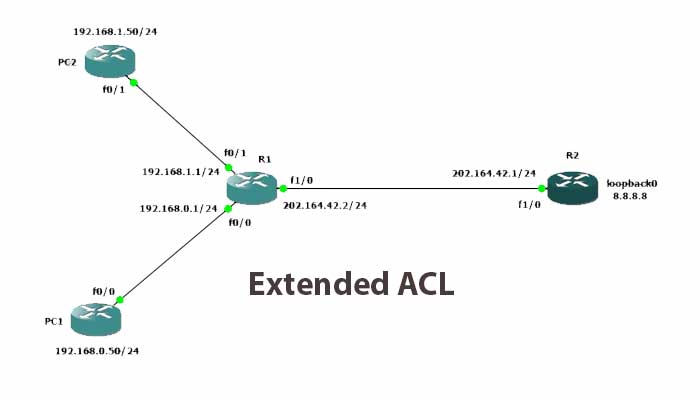

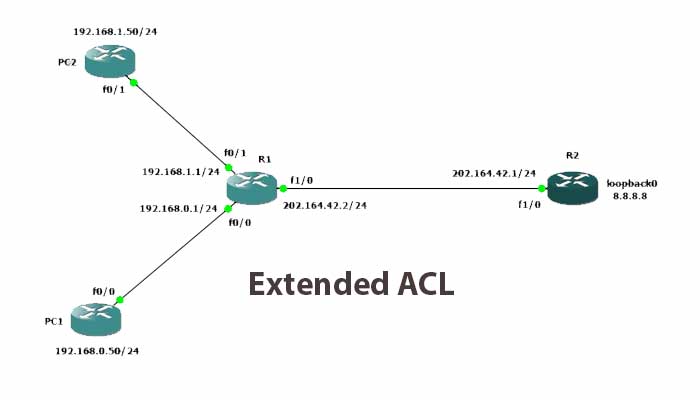

Extended ACL- Extended Access Control Lists

Steps used for ACLs

  1.     As a sequential order, they are processed from top to bottom.
  2.   Until the matches are found ACL conditions are checked.
  3.  Once the match got found it stops its checking.
  4.  Based on the conditions interface take the action. The two possible actions are permissible and deny.
  5.   The packets are allowed to exit from interface only if the conditions got matched.
  6.  A packet will be allowed to exit from interface only if the permit condition gets matched otherwise the packet gets destroyed if they deny condition matches.
  7. If conditions are mismatched packets get destroyed.

One type of access control list used is the EAC list. In an extended control list, they can differentiate the IP traffic, unlike the Standard Access Control List. In Extended ACL they use both source and destination address and the port number to differentiate the IP traffic. Extended control list filter packets which are near to source address. We can create and configure the EAC lists using an access list and access-group command respectively.

Features of Extended Access Control Lists (Extended ACL)

  • To the source, they seem to be closed but not.
  • Based on the source address, destination address, and the port number the packet filtering takes place.
  • Specified services will be accessed or denied in extended ACLs.
  • A range created for ACL is from 100-199 and can be extended to 2000-2699.
  • Extended control list rules can’t be deleted if it happens all the access lists will be deleted.
  • If the extended access control list contains the names then they are easy to delete those rules.

To Place Extended Access Control List

Filtrating of networks is based on the destination IP addresses, destination addresses, and also port numbers. Usually, the standard access control lists are placed in a router and the router must be placed close to the source network. If it is not kept near to the source the unwanted traffics may absorb the bandwidth till the destination which may create traffic problems in the network.

Named Access Control List

All the lists are identified using numbers or names. It is user-friendly to use named access control list rather than numbered access control list because it is easier to recognize with name and can associate a task. To access the control list we can add or reorder the statements. The access control list contains the following features that are not supported by the number of access lists. They are:-

  • Filtering IP options.
  • Disconnected ports.
  • Filtering the TCP flag.
  • We can delete the entries with no permit.

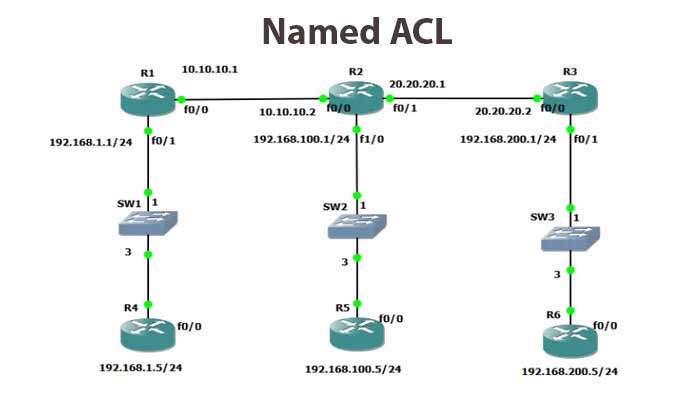

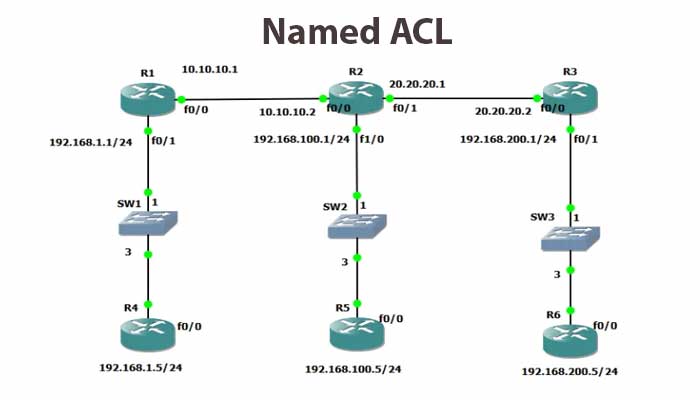

Named Access Control Lists

Creating New Named ACL

  1. First M-Files Admin needs to get opened.
  2. Connect the m file server shown in the left side.
  3. Expand document vaults can be viewed in the left side tree and also expand the document vaults of our choice.
  4. Select the Name Access Control Lists node seen in the tree.
  5. Next on the task area click the New Named Access Control List. Here the dialogue box gets opened.
  6. In the name field of the box write the descriptive name in the provided field.
  7. Next, click the add button to add users or groups of users.
  8. Select the user or group of users that we wish to add to named access control lists.

Or

To select the properties of the user or group of users to select the user from metadata and use the drop-down menu.

  1. Click to add the user or user groups and to close the selected user or user group.
  2. To adjust the user or user group permission select the permission of the user from the dialogue box.
  3. Permissions to adjust and to check are:
  • Allow the option used to allow the user for permission.
  • Deny option used to deny the user permission.
  1. To set additional permission steps 10 and 11 repeats.
  2. Optional, in permission set user to see named access control lists.
  3. Optional, on advanced permission, we can set the name for named access control lists.
  4. Finally, click the OK button to finish the creation.

Modifying Named ACLs

The steps followed to modify the named access control lists are:

  1. Firstly open the M-Files Admin.
  2. Open the desired connection of M-Files.
  3. Expand the document vaults, and expand as our choice.
  4. Highlight the named access control lists shown on the left side (list of named access lists will show on the right side).
  5. Right-click the named access control lists shown and edit the details we want and select the properties from the context menu.
  6. This step is optional to set the user or group of users.
  7. Select the permission of the user where we need to make changes.
  8. Select deny or allow button for the desired operation as our choice.
  9. Click the ok button once all the appearance is get set.
  10. If permissions are set for more than one object, confirm the update box will be opened.
  11. Click the change object permission to set the changes.
  12. Click preserve object permission to unset the changes.

Guidelines used for Access Control Lists (ACLs)

  1. As a sequential order, they are processed from top to bottom.
  2. Until the matches are found ACL conditions are checked.
  3. Once the match got found it stops its checking.
  4. Based on the conditions interface take the action. The two possible actions are permissible and deny.
  5. The packets are allowed to exit from interface only if the conditions got matched.
  6. A packet will be allowed to exit from interface only if the permit condition gets matched otherwise the packet gets destroyed if they deny condition matches.
